Low-pressure Suction Unit
Thoracic drainage system

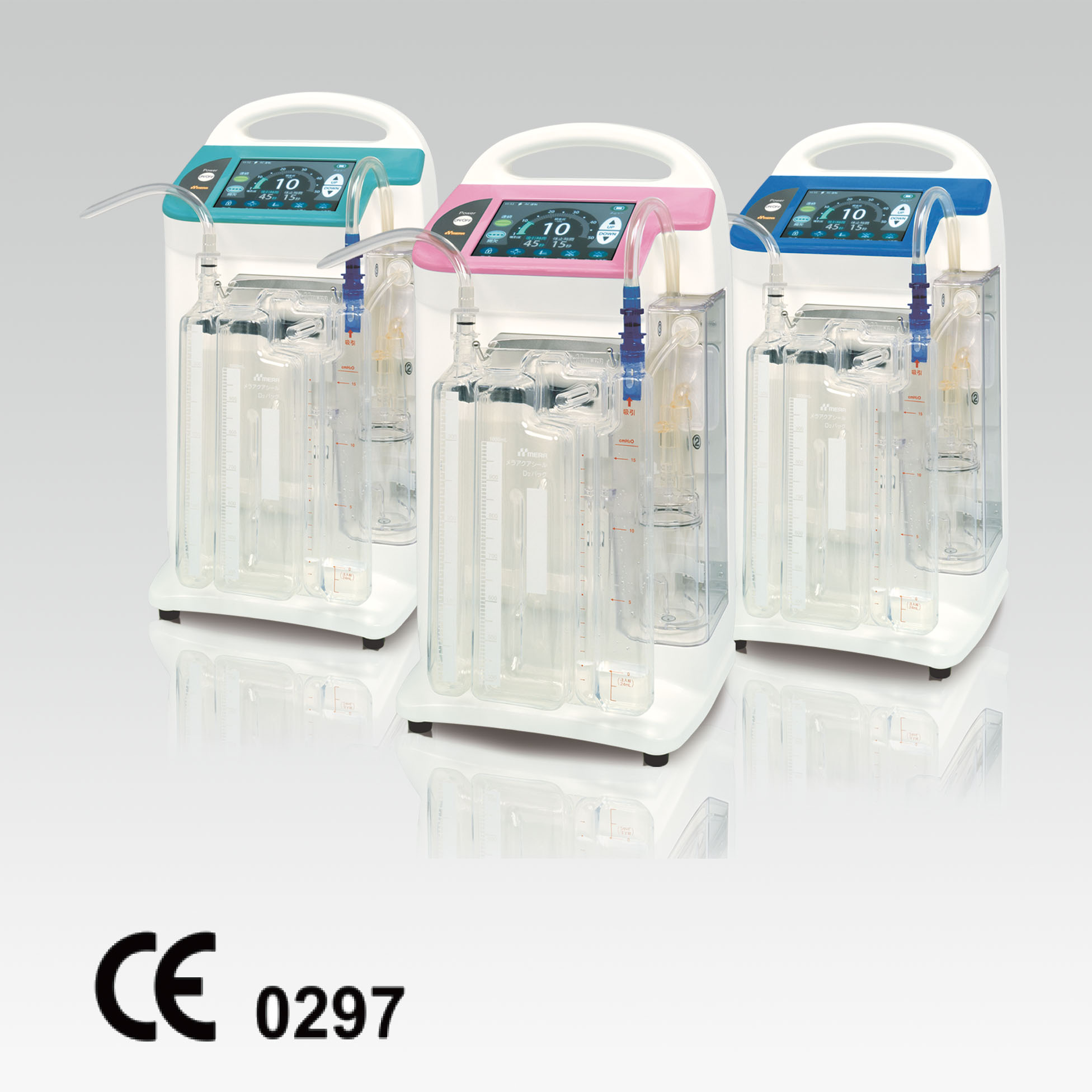

MERA SUCUUM is an electric low-pressure chest suction unit to intermediately discharge blood and secretions which are accumulated in the thoracic cavity of the patient’s body. MERA SUCUUM 009 installs “Trend” mode to track and manage the trend of pneumothorax and post pneumonectomy air leak
USER-FRIENDLY
Clear and simple color LCD touch panel
User-friendly design for avoiding operational error
●Periodic time can be set in units from sec. to min. by continuously moving up and down the switch.
●You can customize the screen display to simply indicate desired functions in restricted mode.
(Functions include automatic lock, periodic suction, trend and mute/pause for alarm).
TREND
A trend function that is useful for monitoring air leakage during drainage of thoracic cavity
●This unit displays air bubbling time, mean pressure and max/min pressure which are detected with a pressure sensor.
●Such parameters are useful for monitoring the presence of air leakage during patients resting, coughing or taking a deep breath.
CONTAMINATION/INFECTION CONTROL
Single use drain tank set / 009T-ACC-SDTS
●Suction circuit with PTFE filter
(hydrophobic type)
Reusable drain tank set / 009T-ACC-RDTS
●Reusable type of suction circuit with washing, immersive cleaning and disinfection functions
3 colors are available for the unit panel.
You can choose among pink, green or blue according to your application.
Specification

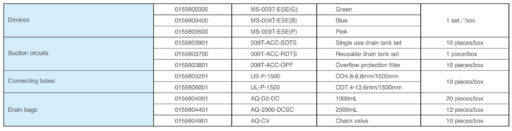

Product List
Code#
Description Quantity
We have acquired CE marking for Thoracic drainage system “MERA SUCUUM 009”.
